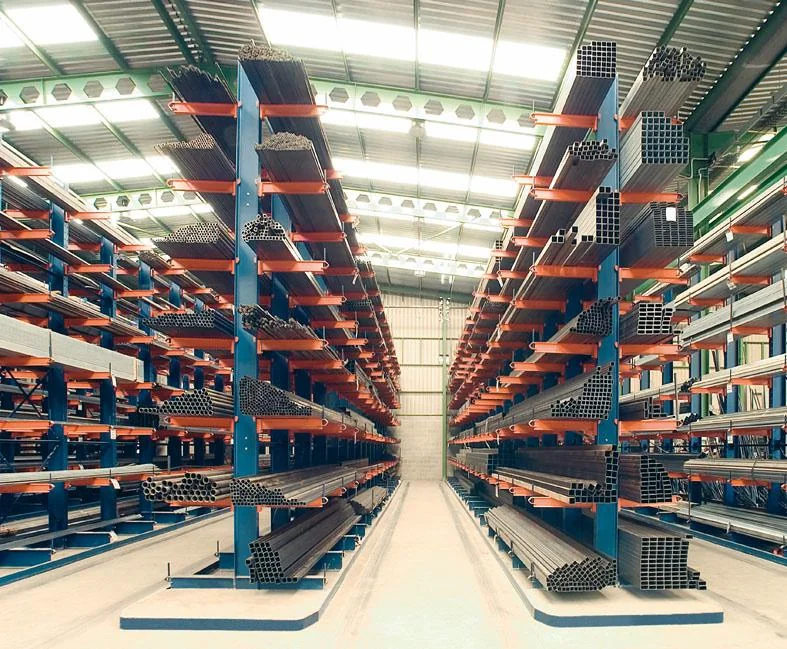

Cantilever Racking System

EMITeg's Cantilever Racking System represents the ultimate storage solution for long, bulky, and irregularly shaped items that conventional racking systems simply cannot accommodate. With its distinctive arm-based design that eliminates front columns, our cantilever racking provides unobstructed access to materials like lumber, pipes, steel bars, furniture, and other challenging items.

Each system is custom-engineered to your specific requirements, offering exceptional versatility and efficiency for industries that handle long materials. The open-fronted design allows for easy side loading with forklifts or overhead cranes, significantly improving handling efficiency and reducing product damage.

Benefits

• Unobstructed access to stored materials from the front
• Eliminates product damage caused by column obstructions
• Maximizes storage capacity for long and bulky items
• Simplifies loading and unloading operations
• Reduces handling time and improves operational efficiency

Features

• Column-free front design for complete accessibility
• Fully adjustable arms for maximum flexibility
• Heavy-duty structural steel construction for superior durability
• Available in single or double-sided configurations
• Multiple arm lengths and load capacities to suit your needs
• Optional arm-end stops to prevent items from sliding off
• Optional roof covers for outdoor installations
• Modular design allows for future expansion

Technical Specifications

• Height: Customizable from 2m to 8m
• Arm Length: Available from 500mm to 2000mm
• Arm Capacity: Up to 1500kg per arm (customizable based on requirements)
• Column Spacing: Adjustable from 1000mm to 1500mm
• Base Depth: 500mm to 1200mm depending on load requirements
• Column Material: High-grade structural steel with reinforced base plates
• Finish: Premium powder coating or hot-dip galvanized for corrosion resistance
• Accessories: Arm stops, dividers, roof systems, and protective bollards

Ideal Applications

• Lumber and building materials storage
• Metal fabrication and steel service centers
• Pipe and tubing storage facilities
• Furniture manufacturing and warehousing
• Automotive parts and components storage
• Carpet and flooring distribution centers
• Any industry handling long, bulky, or irregularly shaped items
