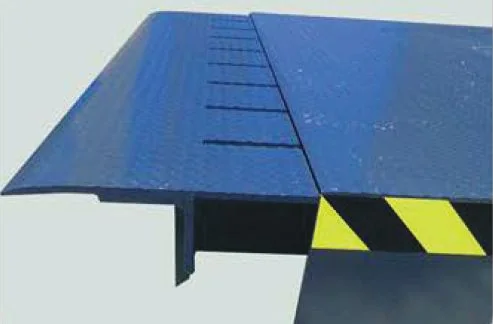

Hydraulic Dock Leveler

EMITeg's Hydraulic Dock Leveler represents the gold standard in loading dock equipment, providing a seamless bridge between your facility and transport vehicles. Engineered with precision hydraulics, our dock levelers ensure smooth transitions that protect both your personnel and products during loading and unloading operations, significantly enhancing operational efficiency and safety.

Unlike mechanical alternatives, our hydraulic systems offer superior control, reliability, and longevity with minimal maintenance requirements. The push-button operation eliminates physical strain on operators while providing precise positioning capabilities that accommodate vehicles of varying heights and load conditions. Each unit is built with premium-grade materials and components to withstand the demanding conditions of high-volume loading environments.

Benefits

• Eliminates dangerous gaps between loading dock and transport vehicles
• Reduces product damage during material transfer operations
• Increases loading/unloading speed and operational efficiency
• Minimizes operator fatigue and potential injuries
• Lowers maintenance costs compared to mechanical alternatives
• Extends equipment lifespan through controlled operation

Features

• Advanced hydraulic system for smooth, controlled operation
• Heavy-duty steel construction with reinforced deck plate
• Self-cleaning, lubrication-free hinges for minimal maintenance
• Safety velocity fuse protection against unexpected trailer departure
• Full-range toe guards for enhanced operator safety
• Night lock security feature to prevent unauthorized access
• Automatic return to stored position when not in use
• Low-maintenance design with easily accessible components

Technical Specifications

• Capacity: Available in 6,000kg, 8,000kg, and 10,000kg load ratings to match your operational requirements
• Platform Width: Standard widths from 1.8m to 2.2m (custom widths available)
• Platform Length: Options from 2.0m to 3.0m to accommodate various dock configurations
• Lip Length: 400mm standard (500mm extended lip available for deeper trailer beds)
• Working Range: Above dock: +300mm, Below dock: -300mm for versatile vehicle accommodation
• Deck Plate: 8mm thick high-tensile steel with anti-slip surface
• Lip Plate: 16mm thick high-tensile steel with beveled edge
• Hydraulic System: Self-contained power unit with high-pressure cylinders
• Power: 380V/3Ph/50Hz hydraulic power unit (other options available)
• Control Panel: NEMA 4X rated with simple push-button operation
• Finish: Corrosion-resistant powder coating in EMITeg safety blue

Ideal Applications

• Distribution centers and logistics facilities
• Manufacturing plants with high-volume shipping operations
• Cold storage facilities and food distribution centers
• Retail distribution hubs and fulfillment centers
• Automotive industry loading bays
• Any facility with permanent loading docks requiring efficient material transfer

Safety Features

EMITeg prioritizes safety in all our dock equipment. Our Hydraulic Dock Levelers include multiple safety features such as velocity fuses to prevent free-fall in case of unexpected trailer departure, full-range toe guards to protect operators, cross-traffic support legs for maintenance safety, and highly visible safety markings. All units comply with international safety standards and regulations.
