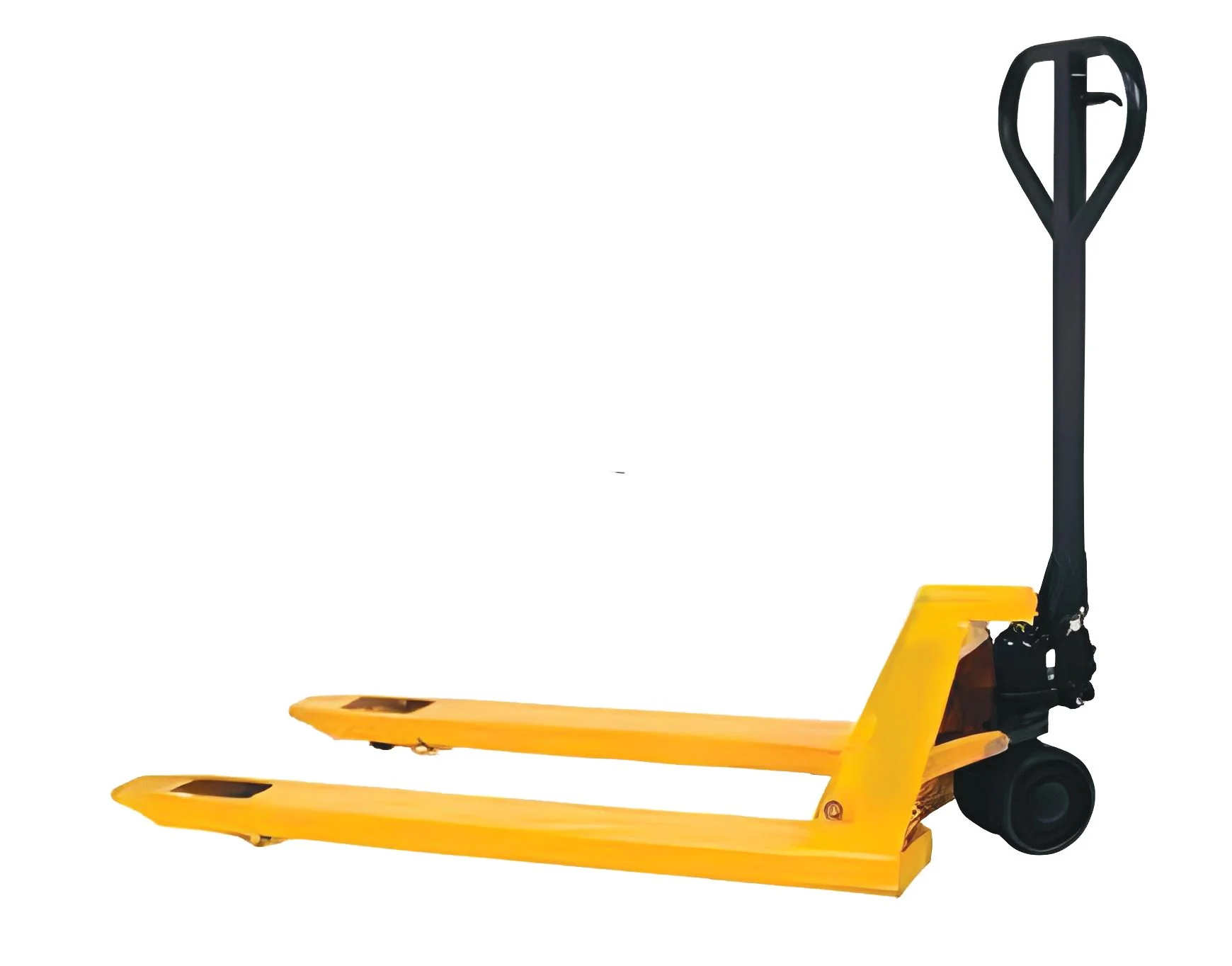

Hand Pallet Trucks
EMITeg's Hand Pallet Trucks represent the cornerstone of efficient material handling operations in any industrial environment. These versatile, manually operated hydraulic trucks are engineered to provide reliable performance day after day, year after year, making them an indispensable tool for warehouses, manufacturing facilities, distribution centers, and retail operations worldwide.
What sets our Hand Pallet Trucks apart is their perfect balance of durability, maneuverability, and ergonomic design. Each truck is constructed using premium-grade materials and precision engineering to ensure consistent performance even under the most demanding conditions. The result is a material handling solution that not only improves operational efficiency but also reduces worker fatigue and potential injuries.
Benefits
- Increases material handling efficiency and productivity
- Reduces manual lifting and associated worker injuries
- Provides cost-effective solution for pallet transportation
- Requires minimal maintenance for continuous operation
- Offers exceptional maneuverability in tight spaces
- Delivers long service life with excellent return on investment
Features
- Heavy-duty steel construction for maximum durability
- Ergonomically designed handle with three-position control lever
- Premium polyurethane wheels for smooth, quiet operation
- High-efficiency hydraulic pump system with quick lift capability
- Reinforced fork tips for easy pallet entry and exit
- Integrated overload protection valve to prevent system damage
- Sealed bearings for reduced maintenance requirements
- Powder-coated finish for corrosion resistance
Technical Specifications
- Capacity: Available in 2,500kg and 3,000kg load ratings
- Fork Length: Standard 1150mm (custom lengths available from 800mm to 2000mm)
- Fork Width: Individual fork width of 160mm
- Overall Width: 550mm standard (custom widths available)
- Lowered Height: 85mm for easy access under low-clearance pallets
- Raised Height: 200mm for efficient clearance during transport
- Steering Wheels: 200mm diameter polyurethane wheels with sealed bearings
- Load Wheels: 80mm diameter tandem polyurethane wheels for stability
- Pump Type: High-efficiency hydraulic system with overload protection
- Weight: 70kg - 80kg depending on configuration
- Finish: Durable powder coating in EMITeg safety yellow
Ideal Applications
- Warehouses and distribution centers
- Manufacturing and production facilities
- Retail and wholesale operations
- Shipping and receiving areas
- Food processing and pharmaceutical facilities
- Any environment requiring efficient pallet movement
Optional Features
- Scale integration for weight measurement during transport
- Quick-lift pump for faster raising of heavy loads
- Galvanized finish for wet or corrosive environments
- Nylon wheels for sensitive flooring applications
- Custom fork dimensions for specialized pallet types
- Brake systems for operation on inclines
